Following the completion of your in-progress Analog + Digital Interactions prototype, and Prototype Proposal Draft, Complete the 10/5/1 ideas exercise described here.

Prepare an initial version of your Analog + Digital Interactions prototype as well as a Prototpye Proposal draft.

brief

Create a prototype in which an audience member/user is prompted to interact with at least two sensors in order to control/change at least two possible outputs. While the specifics are up to you one general goal for this project is to create a context/story that incentivizes interaction with...

A voltage divider is a circuit that produces an output that is smaller than its input (where the output is voltage or current).

The above schematic represents the most basic way to use two resistors (labeled as Z1 and Z2) to take some voltage (Vin) and output a fraction of it (Vout). The...

analog_read.py

# analog read

from machine import ADC, Pin
from time import sleep_ms

adc = ADC(Pin(34))
adc.atten(ADC.ATTN_11DB)

while True:
    print(adc.read())
    sleep_ms(20)

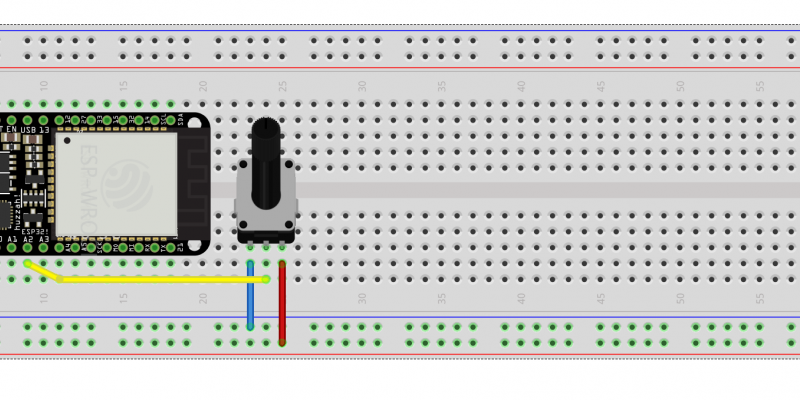

Hookup Pattern

1. Connect Pot1 to ESP32 GND
2. Connect Pot2 to ESP32 34
3. Connect Pot3 to ESP32 3V
